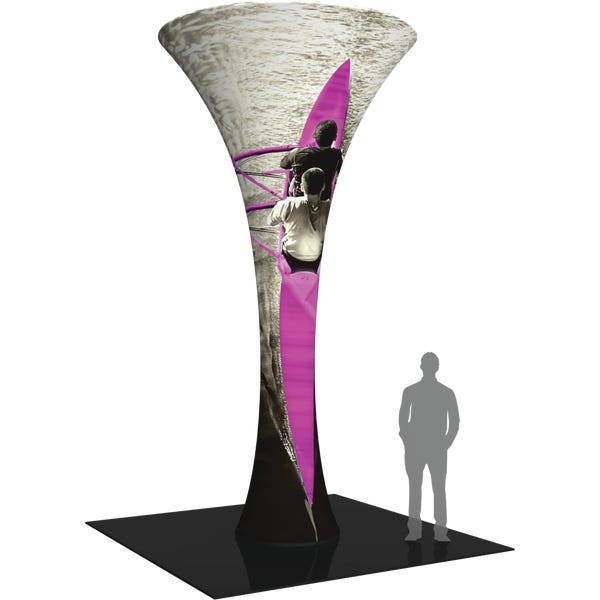

Formulate Funnel 02 Tension Fabric Structure


The 16ft Formulate® Fabric Funnel 02 can transform any environment through form, fabric and lighting. Formulate Funnel 02 measures 16ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 02 packs down into two wheeled OCH2 cases for easy storage and transport.

Formulate Funnel 02 Graphic [FUN-02-G]

* Required Fields



 Add to Compare e-mail

Description

Details

- State-of-the-art 30mm curved aluminum tube frame with expanding spigots
- Easy to store and ship
- Quick to set up
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
- 42" diameter at base

Additional Information

Additional Information

Graphic Width 95.21"
Graphic Height 200"
Assembled Dimensions 98.5"W x 188.41"H x 98.5"D
Hardware Only Weight 139.5 lbs
Graphics Only Weight 20 lbs
Approximate Total Display Weight 159.5 lbs
Shipping Dimensions Ships in:
2 x OCH2 (52"L x 29"H x 15"D)
Approximate Shipping Weight 219.5 lbs
*For more detailed information, reference the instructions and/or graphic template.
Downloads
Setup Instructions IS_FUN-02.pdf
Graphic Templates GT_FMLT-FUN-02.pdf
Video Link Setup Video 1
